2 Electrical Wiring

2.1 Cryostat Wiring

Symmetric Energisation (8/9 Tesla)

Coaxial current lead terminal on tall cryostat services neck (this neck also features the VTI needle valve):
  • Inner terminal post I+ (start of entire magnet, internal red wire)
  • Outer terminal post I- (end of entire magnet, internal black wire)

Asymmetric Energisation (4 Tesla)

Co-axial current lead terminal on short cryostat services neck (this neck also features the syphon entry port):
  • Inner terminal post I+ (start of selected coils, internal blue wire)
  • Outer terminal post I+ (end of selected coils, internal brown wire)

Connections to persistent mode switch heaters

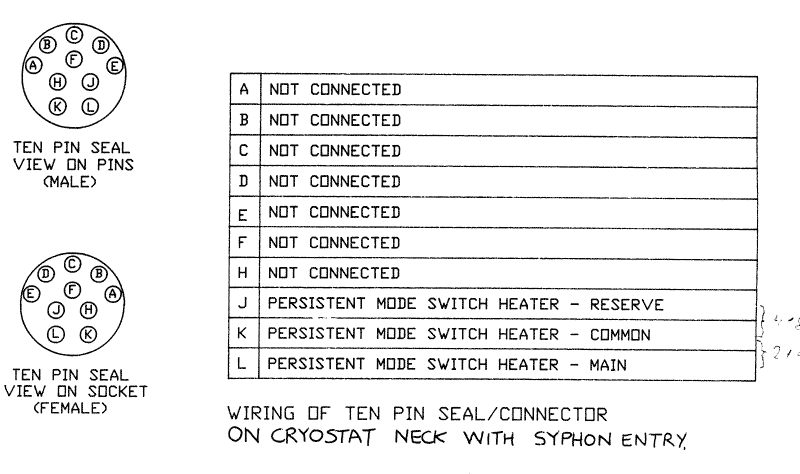

Ten pin connector on services neck with syphon entry: MA09WiringManual/SwitchHeaterPlug.gif

Connections to carbon resistors for monitoring lambda point refrigerator

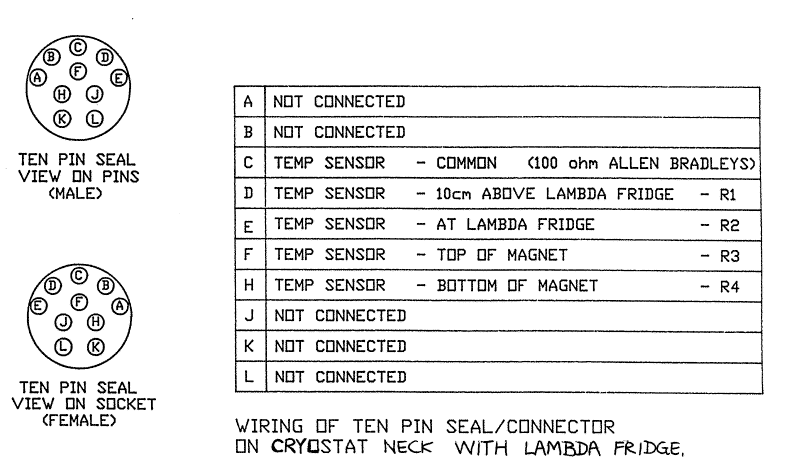

Ten pin connector on services neck with lambda point refrigerator needle valve and pumping line: MA09WiringManual/AllenBradleyPlug.gif

Connections to helium level probe.

Ten pin connector on services neck with VTI needle valve

VTI heat exchanger thermometry and non-inductive heater

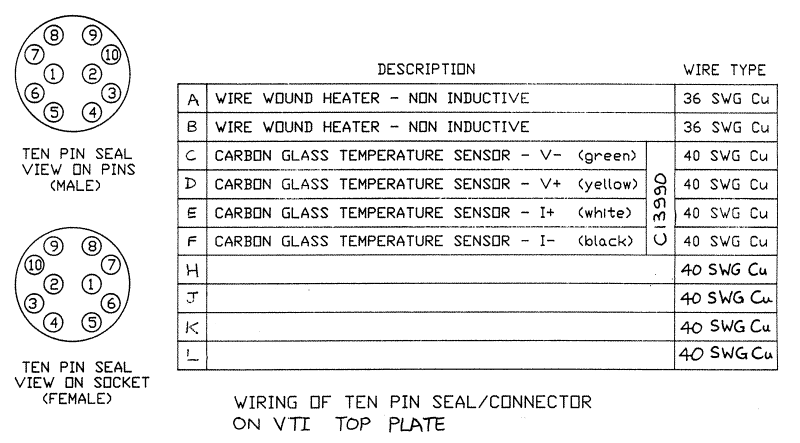

Ten pin connectors on VTI top plate: MA09WiringManual/VTIPlug.gif

Heater and carbon resistor for clearing VTI needle valve blockages

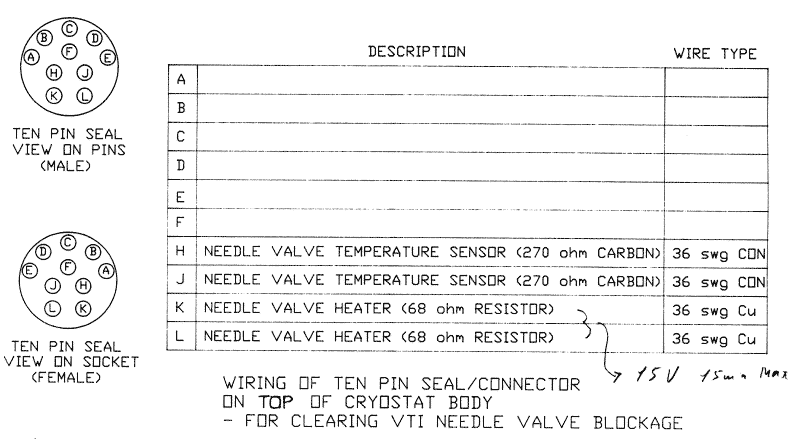

Ten pin connector on cryostat top plate: MA09WiringManual/NeedleValvePlug.gif

Auto-needle valve control for the VTI

Not mounted (Five pin connector on services neck with motor drive)

Original Risų Thermometry Cabling

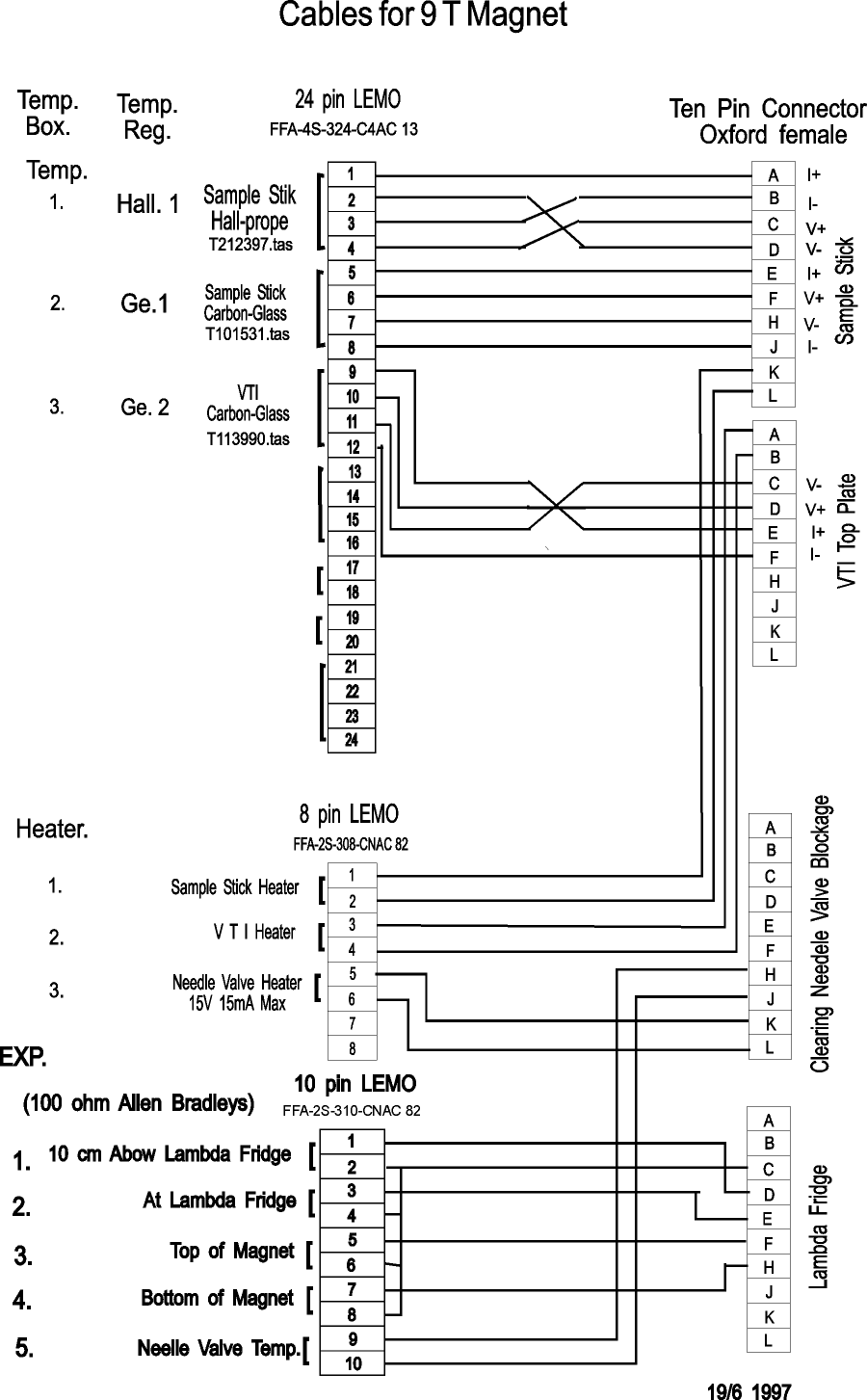

MA09WiringManual/OriginalRisoeCables.gif

2.2 Magnet Winding

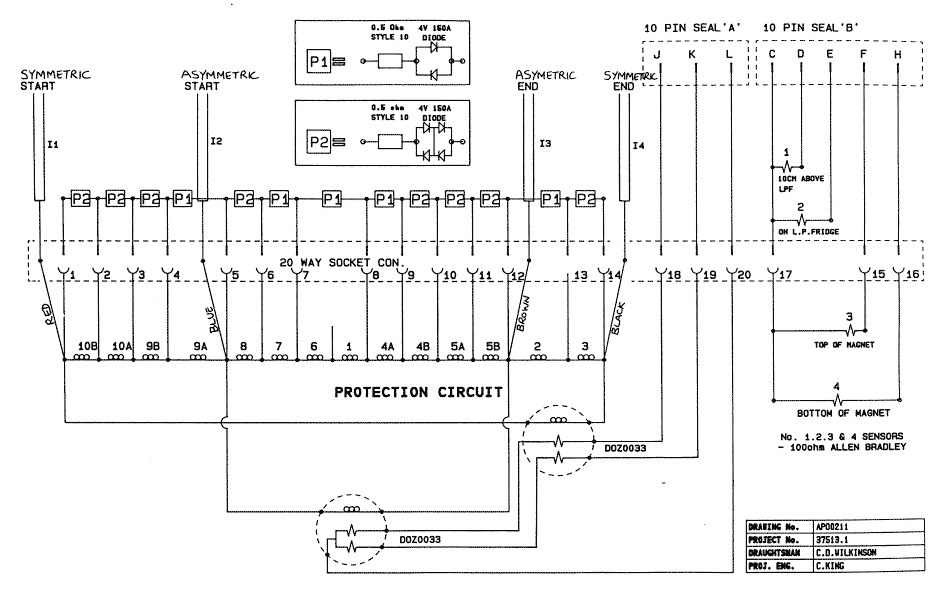

MA09WiringManual/InternalWiring.gif
